Serie 10 - Labelling of pallets

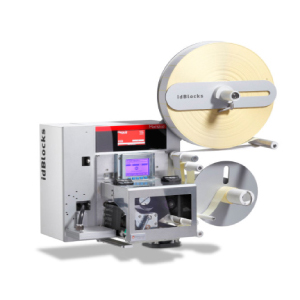

Serie 20 Linear – Tamp Blow
Palet: Pneumatic (1 or 2 stops) and servo-lineal. Pallets applicator for 1, 2 or 3 sides: frontal, side & back.
Several cylinders (Pneumatic or Electric) to reach both faces of the pallet.
Application when the pallet is stopped.
Stroke length: 800 & 1000mm.
Label: 148mm x 210m.
PAD adapts to irregular surface.
PAD with 180º turn for frontal & backsides.
Productivity at 2 sides:
Pneumatic – 6011: 120 pallets/hour
Servo Electric – 6010: 200 pallet/hour
Characteristics:
For 2 sides labeling: 1 pallet stop.
For 3 sides: 2 pallet stops.
Available only in 6’’.
Cabinet & Barcode scanner on PAD.
Application on top, bottom or side.
Label & pad dimensions: From 30×30 mm to 160x210mm
Productivity: 30 labels/minute.
Cylinder stroke:
4’’: 210 or 360mm.
6’’: 600 or 800mm.
Auto detection of product distance: sensitive pad.
4’’ & 6’’.
Application with the product stopped or in movement.
High power blowing system to ensure a good label application.

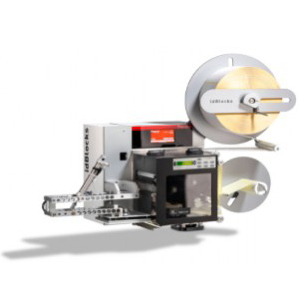

SERIE 30 Frontal – Tamp Blow

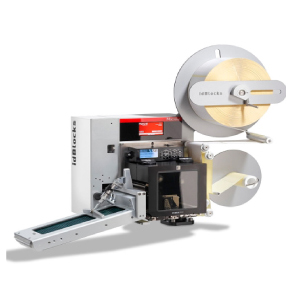

SERIE 40 Corner wipe (Fan Belts)
Application: frontal or back sides.
Stroke length: 210 or 360mm
Label dimensions: From 30×30 mm- to 160x210mm
Productivity: 16 labels/minute.
Same characteristics than Tamp Blow.
4’’ & 6’’
Application on movement on top, bottom, side & Back corner (pusher).
Label dimensions: Min. 50x50m – Max. 110x400mm or 160x300mm
Pad Length = 370mm.
Same machine for different label dimensions.
Productivity: 20 labels/min (for label 100×300 mm).
Pusher for corner application.
Fans to maintain the label onto the pad
High production: Prints next label while is applying.

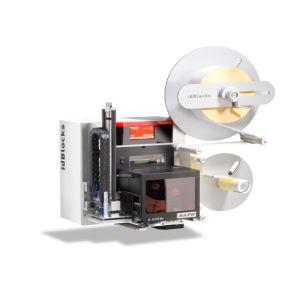

SERIE 50 Frontal – Tamp Blow
Label Applied label position: side, top or bottom
High power blowing system: cavity
Blowing distance : from 20 to 60mm
Label dimensions: Min. 30x30mm – Max 80x80mm
High productivity rates: 120 label/min and higher:
For 40x40mm 150 labels/min
No contact with product.
Optional: cylinder to reduce distance with the product.
Only available for 4’’.
Application over curvy surfaces.
